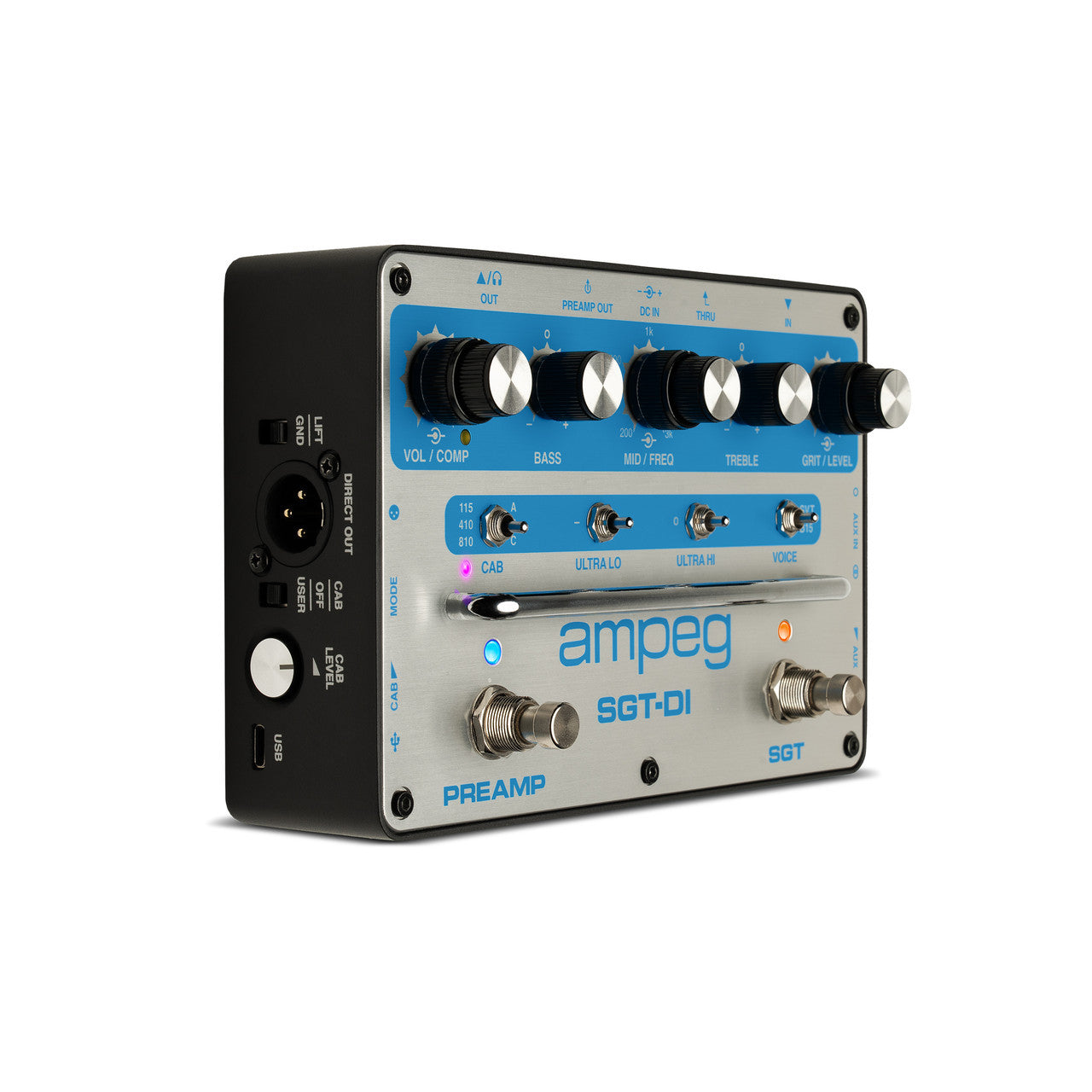

ampeg sgt-di bass preamp pedal and di Ampeg SGT-DI Bass Preamp Pedal and DI

ampeg sgt-di bass preamp pedal and di Ampeg SGT-DI Bass Preamp Pedal and DIHonor Legacy and Modernize at the Same Time with the Ampeg SGT DI Bass Preamp Pedal and DI Blue Line Anniversary Edition The SGT DI preamp and DI gives modern bassists an entire rig in a single stompbox. It delivers an enhanced Super Grit Technology overdrive circuit featuring iconic Ampeg SVT and B15 voices, versatile 3 band EQ now with sweepable Mid circuit, Ultra Hi and 3 way Ultra Lo switches, a variable compressor, and an Aux Headphone section.

Honor Legacy and Modernize at the Same Time with the Ampeg SGT-DI Bass Preamp Pedal and DI - Blue Line Anniversary Edition

The SGT-DI™ preamp and DI gives modern bassists an entire rig in a single stompbox. It delivers an enhanced Super Grit Technology™ overdrive circuit featuring iconic Ampeg SVT® and B15 voices, versatile 3-band EQ now with sweepable Mid circuit, Ultra-Hi and 3-way Ultra-Lo switches, a variable compressor, and an Aux /Headphone section. Plus! Introducing the first IR Loader/Cab Simulator from Ampeg. Choose from three classic factory cabs or up to three cabs of your own by using the free Ampeg IR Loader application.

• 3-Band EQ with sweepable Mid circuit
• SGT circuit with SVT and B15 voicing switch
• Onboard IR Loader/Cab Simulator
• Ultra-Hi and 3-way Ultra-Lo switches
• Variable 10:1 compressor

What is an IR

A speaker cabinet impulse response or “IR” is essentially a digital audio snapshot of a cabinet that captures the acoustic characteristics of that specific cab, along with the signal chain used to record it—microphone(s), preamp(s), cable, etc.—and the room in which it was recorded. IRs allow you to “virtually” switch between different cab sounds in the same way you would swap physical cabs.

SGT-DI is the first physical Ampeg product featuring IRs and IR loading

SGT-DI comes with six preloaded Ampeg factory cab IRs, three of which may be replaced with your own: Cab Mode includes Ampeg Heritage B-15, Heritage SVT-410HLF, and SVT-810 Squareback IRs. User Mode includes overwritable Ampeg SVT-112AV, SVT-210AV, and SVT-212AV IRs. The Cab Level control enables you to adjust and save the amount of cab IR sound in your signal. The IR Off Mode bypasses the IR circuitry altogether.

SPECIFICATIONS

• Total Impedance: 1 Mohm (nominal)
• Headphone Output: Output Impedance: 22 Ohms 25mW max. power out at 32 Ohm load impedance
• Signal-to-Noise Ratio: 106dB (20Hz-20 kHz, A-weighted, Preamp and SGT disabled) 102dB (A-weighted, Preamp engaged with tone controls flat, boosts off)
• Maximum Gain
• Preamp Out: 57dB (at 1kHz, EQ flat, Preamp and SGT enabled, maximum Grit, maximum Volume)
• 17dB Clean Gain (Preamp only, tone controls flat, boosts off)
• Headphone Out: 57dB (at 1kHz, EQ flat, Preamp and SGT enabled, maximum Grit, maximum Volume, Cab Mode disabled)
• XLR Out: 37dB (at 1kHz, EQ flat, Preamp and SGT enabled, maximum Grit, maximum Volume, Cab Mode disabled)
• External Power Requirements: 9V DC @ 500mA, center-negative (use the included adapter)
• Tone Controls
• Bass: +15/-12dB at 40Hz
• Mid: +/-14dB at selected frequency
• Treble: +/-20dB at 8kHz
• Ultra Lo Boost: -10dB at 500Hz, +2dB at 40Hz
• Ultra Lo Cut: -17dB at 40Hz
• Ultra Hi: Enhances the amount of high frequency output by 9dB at 8kHz
• Size (H x W x D):
  • 2.5 x 7.4 x 4.9 inches / 65 x 189 x 126 mm (with side panel knobs recessed, no rubber feet applied)
  • 2.5 x 7.9 x 4.9 inches / 65 x 201 x 126 mm (with side panel knobs extended, no rubber feet applied)
• Weight: 1.9 lbs / 0.85 kg

Manufacturer: Ampeg
Model: SGTDI BLU LINE ANNIVERSARY ED
SKU: I823279-N-1-WHXB
UPC: 614252369183
